Product Summary

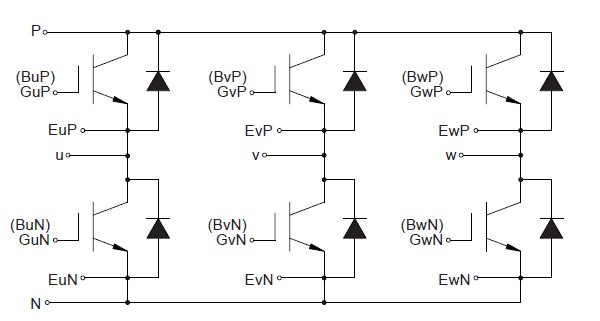

The CM30TF-24H is an IGBT module. It is designed for use in switching applications. The CM30TF-24H consists of six IGBT Transistors in a three phase bridge configuration, with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Typical applications of CM30TF-24H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM30TF-24H absolute maximum ratings: (1)Junction Temperature Tj: –40 to 150 ℃; (2)Storage Temperature Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage VGES: ±20 Volts; (5)Collector Current IC: 30 Amperes; (6)Peak Collector Current ICM: 60 Amperes; (7)Emitter Current IE: 30 Amperes; (8)Peak Emitter Current IEM: 60 Amperes; (9)Maximum Collector Dissipation (TC = 25℃), PC: 310 Watts; (10)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
CM30TF-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM30TF-24H |
|
IGBT MOD 6PAC 1200V 30A H SER |
Data Sheet |
|
|
||||||
