Product Summary
The CM300DY-12A is an IGBT Module. The CM300DY-12A is designed for use in switching applications. Each module consists of two IGBT Transistors in a half-bridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM300DY-12A absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 600 Volts; (4)Gate-Emitter Voltage VGES: ±20 Volts; (5)Collector Current IC: 300 Amperes; (6)Peak Collector Current ICM: 600Amperes; (7)Diode Forward Current IF: 300 Amperes; (8)Diode Forward Surge Current IFM: 600Amperes.
Features
CM300DY-12A features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recover(70ns) Free-Wheel Diode; (4)HigFrequency Operation(20-25kHz); (5)Isolated Baseplate for Easy Heat Sinking.

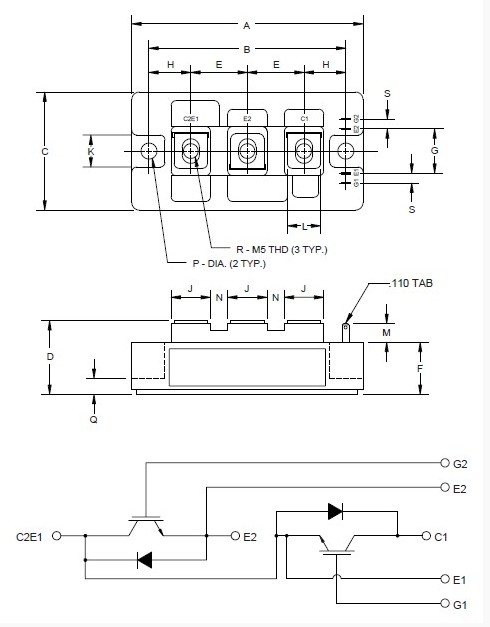

Diagrams
