Product Summary

The CM25MDL-24H is a medium power switching use insulated type module. The applications of the CM25MDL-24H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics.

Parametrics

CM25MDL-24H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 25A; ICM: 50A; (4)Emitter Current, IE: 25A; IEM: 50A; (5)Maximum collector dissipation, PC: 104W.

Features

CM25MDL-24H features: (1)IC: 25A; (2)VCES: 1200V; (3)Insulated Type; (4)CIB Module 3φ Inverter+3φ Converter+Brake; (5)UL Recognized Yellow Card No. E80276 (N), File No. E80271.

Diagrams

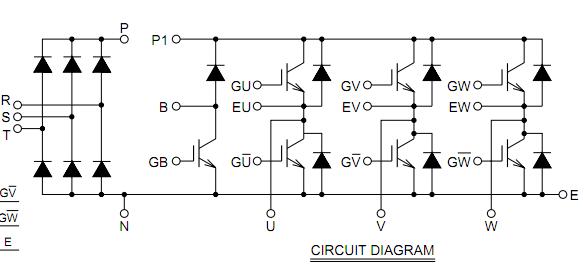

CM25MDL-24H block diagram
