CM20TF-24H

CM20TF-24H, medium power switching use insulated type module, 1200V, 20A, 250W, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $85.00~98.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	98.00 / Piece
51 ~ 80 :	90.00 / Piece
81 ~ 100 :	85.00 / Piece

PartNumber:: CM20TF-24H

Brand:: MITSUBISHI - MITSUBISHI | D/C: 08+

Availability:: Supply Ability: 500/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-20

From Other Seller

Part Number:CM20TF-24H
US $85.00 - 98.00
Quantity:

piece

Product Summary

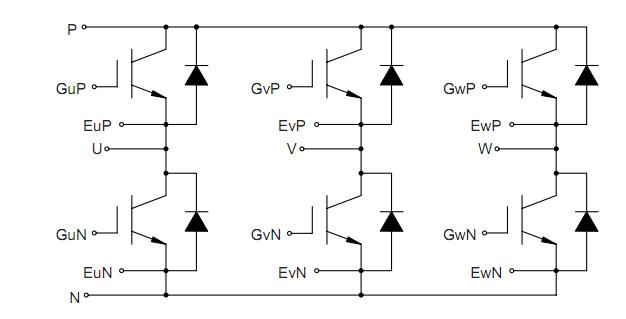

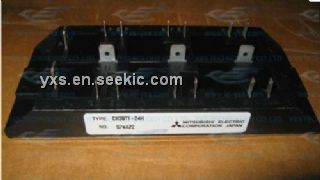

The CM20TF-24H is a Mitsubishi IGBT Module designed for use in switching applications. The CM20TF-24H consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected superfast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM20TF-24H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

Parametrics

CM20TF-24H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 20 Amperes; (6)Peak Collector Current, ICM: 40 Amperes; (7)Emitter Current (TC = 25℃), IE: 20 Amperes; (8)Peak Emitter Current, IEM: 40 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃), Pc: 250 Watts; (10)Mounting Torque, M5 Mounting: 1.47 to 1.96 N·m; (11)Weight: 260 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

CM20TF-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery; (4)Free-Wheel Diode; (5)High Frequency Operation; (6)Isolated Baseplate for Easy; (7)Heat Sinking.
