Product Summary

The CM200DY-34A is an IGBT module. The device is sutiable for General purpose inverters & Servo controls, etc.

Parametrics

CM200DY-34A absolute maximum ratings: (1)Collector-emitter voltage: 1700 V at G-E Short; (2)Gate-emitter voltage: ±20 V at G-E Short; (3)Collector current: 200 A at TC = 25℃, 400 A at Pulse; (4)Emitter current: 200 A at TC = 25℃, 400 A at Pulse; (5)Maximum collector dissipation: 1980 W at TC = 25℃; (6)Junction temperature: -40 to +150 ℃; (7)Storage temperature: -40 to +125 ℃; (8)Isolation voltage: 2500 Vrms at Terminals to base plate, f = 60Hz, AC 1 minute.

Features

CM200DY-34A features: (1)IC: 200A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

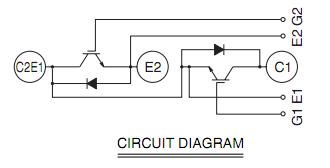

CM200DY-34A block diagram
