CM200DY-28H

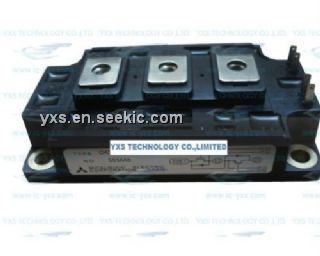

CM200DY-28H, IGBT Module, 1400V, 200A, 1500W, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $92.00~99.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 25 :	99.00 / Piece
27 ~ 35 :	98.00 / Piece
37 ~ 45 :	92.00 / Piece

PartNumber:: CM200DY-28H

Brand:: MITSUBISHI - MITSUBISHI | D/C: 98+

Availability:: Supply Ability: 300/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-28

From Other Seller

Part Number:CM200DY-28H
US $92.00 - 99.00
Quantity:

piece

Product Summary

The CM200DY-28H is an IGBT Module. The device is designed for use in switching applications. The CM200DY-28H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM200DY-28H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

CM200DY-28H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1400 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 200 Amperes; (6)Peak Collector Current, ICM: 400 Amperes; (7)Emitter Current (TC = 25℃), IE: 200 Amperes; (8)Peak Emitter Current, IEM: 400 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃), Pc: 1500Watts; (10)Mounting Torque, M6 Main Terminal: -1.96 to 2.94 Nm; (11)Mounting Torque, M6 Mounting: -1.96 to 2.94 Nm; (12)Weight: -400 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

CM200DY-28H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
