Product Summary
The CM200DU-12E is an IGBT module. The device is sutiable for General purpose inverters & Servo controls, etc.
Parametrics
CM200DU-12E absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 590W; (4)Junction temperature, Tj: -40 to 150℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation voltage, Viso: 2500Vrms.
Features
CM200DU-12E features: (1)IC: 200A; (2)VCE: 600V; (3)Insulated Type; (4)2-elements in a pack.

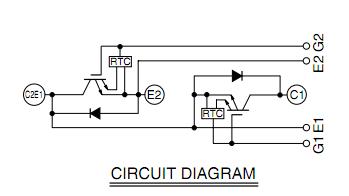

Diagrams
