Product Summary

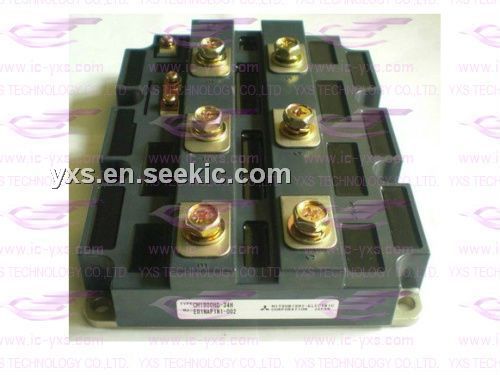

The CM1800HD-34H is a high power switching use insulated type module. The applications of the CM1800HD-34H include Inverters, Converters, DC choppers, Induction heating, DC to DC converters.

Parametrics

CM1800HD-34H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1700V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, ic: 1800A; ICM: 3600A; (4)Emitter current, IE: 1800A; IEM: 3600A; (5)Maximum collector dissipation, PC: 15600W; (6)Junction temperature, TJ: -40 to 150℃; (7)Storage temperature, TSTG: -40to 125℃; (8)Isolation voltage, Visol: 4000V.

Features

CM1800HD-34H features: (1)IC: 1800A; (2)VCES: 1700V; (3)Insulated Type; (4)1-element in a pack; (5)AISiC base plate.

Diagrams

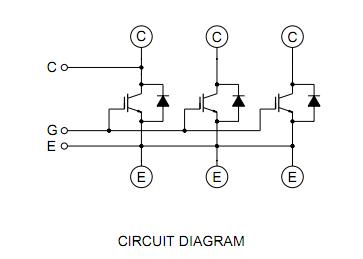

CM1800HD-34H block diagram
