Product Summary
The CM150TU-12E is an IGBT module. The applications of it are UPS, NC machine, AC-Drive control, Servo, Welders.
Parametrics
CM150TU-12E absolute maximum ratings: (1)VCES: 1200V; (2)VGES: ±20V; (3)IC: 150A; (4)ICM: 300A; (5)IC: 150A; (6)Collector dissipation: 600W; (7)Storage temperature: -40 to 125℃.
Features
CM150TU-12E features: (1)IC: 150A; (2)VCES:1200V; (3)Insulated type; (4)2-elements in a pack.

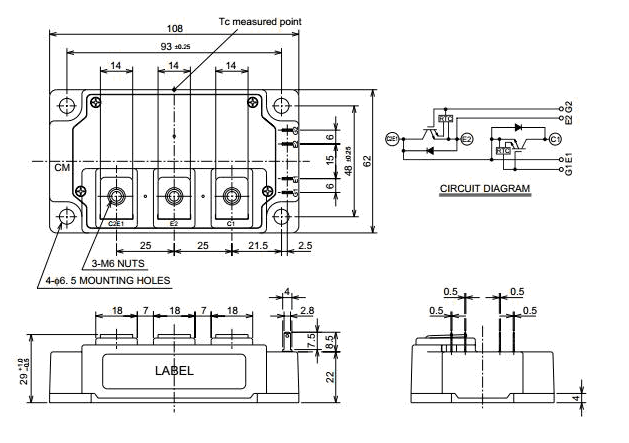

Diagrams
