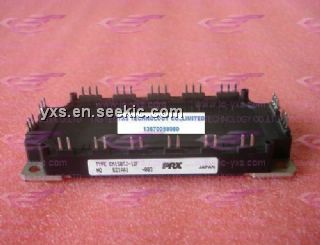

Product Summary
The CM150TJ-12F is a Powerex IGBTMOD Module designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM150TJ-12F include AC Motor Control, UPS, Battery Powered Supplies.
Parametrics
CM150TJ-12F absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 150 A; (6)Peak Collector Current, ICM: 300 A; (7)Emitter Current (TC = 25℃), IE: 150 A; (8)Peak Emitter Current, IEM: 300 A; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃), Pc: 403 Watts; (10)Mounting Torque, M5 Main Terminal: 31in-lb; (11)Weight: 300 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
CM150TJ-12F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.

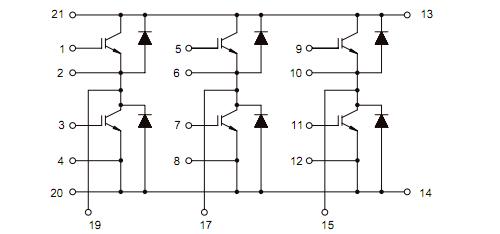

Diagrams
