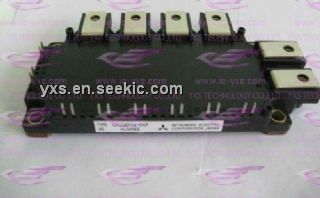

Product Summary

The CM150RX1-24A is an IGBT module. The applications of the CM150RX1-24A include General purpose Inverters, Servo Amplifiers.

Parametrics

CM150RX1-24A absolute maximum ratings: (1)VCS, collector-emitter voltage: 600V; (2)VGES, gate-emitter voltage: ±20V; (3)IC: 150A; (4)ICM: 300A; (5)IE: 150A; (6)IEM: 300A; (7)Collector dissipation: 520W.

Features

CM150RX1-24A features: (1)IC: 150A; (2)VCES: 600V; (3)7pack (3-phase Inverter + Brake); (4)Flatbase Type / Insulated Package / Copper (non-plating) base plate; (5)RoHS Directive compliant.

Diagrams

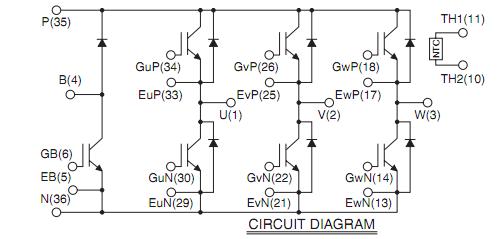

CM150RX1-24A block diagram
