Product Summary

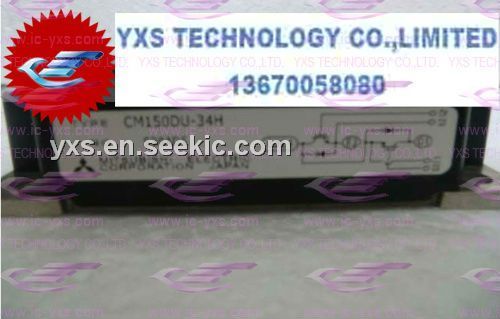

The CM150DU-34H is an IGBT Module. The applications of the CM150DU-34H include General purpose inverters & Servo controls, etc.

Parametrics

CM150DU-34H absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1700A; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current: DC, TC=25℃, IC: 150A; Pulse, ICM: 300A; (4)Emitter current: IE: 150A; Pulse, IEM: 300A; (5)Maximum collector dissipation, TC = 25℃, PC: 1100W; (6)Junction temperature, Tj: -40 to +150℃; (7)Storage temperature, Tstg: -40 to +125℃; (8)Isolation voltage, Main Terminal to base plate, AC 1 min., Viso: 2500V; (9)Torque strength: Main Terminal M5: 3.5 to 4.5N ·m; Mounting holes M6: 3.5 to 4.5N ·m; (10)Weight, Typical value: 400g.

Features

CM150DU-34H features: (1)IC: 150A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

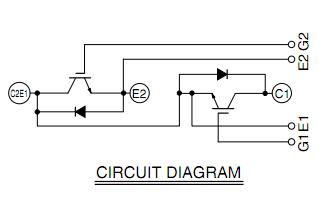

CM150DU-34H block diagram
