Product Summary
The CM100DY-12E is a high power switching use mitsubishi IGBT module. Its applications include AC motor control, motion/servo control, UPS, welding power supplies.
Parametrics
CM100DY-12E absolute maximum ratings: (1)Junction temerature: -40 to 150℃; (2)Storage temperature: -40 to 125℃; (3)Collector-emitter voltage: 600V; (4)Gate-emitter voltage: ±20V; (5)Collector current: 100A;(6)Peak collector current: 200A; (7)Peak emitter current: 200A; (8)Maximum collector dissipation: 400W.
Features
CM100DY-12E features: (1)Low drive power; (2)Low VCE; (3)Discrete super-fast recovery free-wheel diode; (4)High frequency operation; (5)Isolated baseplate for easy heat sinking.

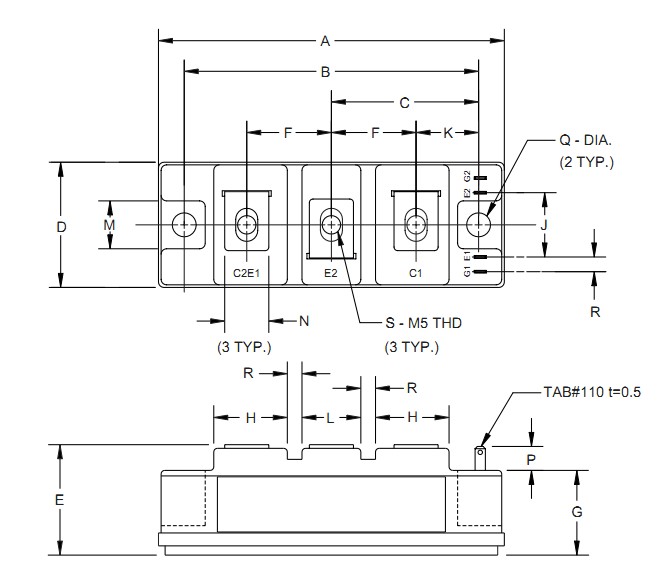

Diagrams
