Product Summary
The CM1000DU-34NF is an IGBT Module. The applications of the CM1000DU-34NF include General purpose inverters & Servo controls, etc.
Parametrics
CM1000DU-34NF absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1700V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, TC= 25℃, IC: 1000A; (4)Collector current, pulse, ICM: 2000A; (5)Emitter current, TC= 25℃, IE: 1000A; (6)Emitter current, pulse, IEM: 2000A; (7)Maximum collector dissipation, TC= 25℃, PC: 8900W; (8)Junction temperature, TJ: -40 to +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 3500Vrms.
Features
CM1000DU-34NF features: (1)IC: 1000A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

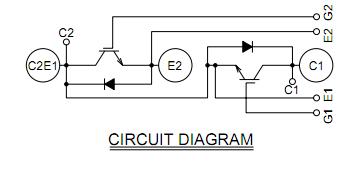

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM1000DU-34NF |
|
IGBT MOD DUAL 1700V 1000A NF SER |
Data Sheet |
Negotiable |
|
||||||
