Product Summary

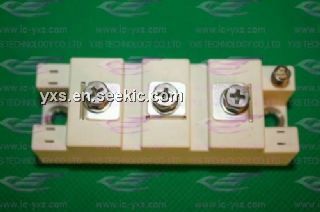

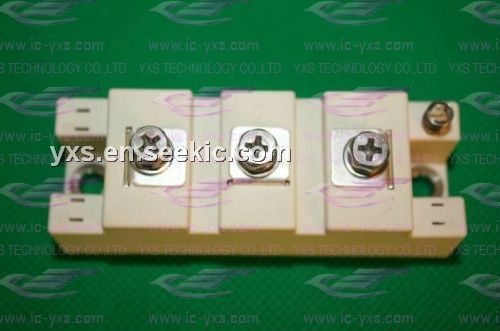

The BSM75GAL120DN is an IGBT power module.

Parametrics

BSM75GAL120DN absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage VCGR: 1200V; (3)Gate-emitter voltage VGE: ± 20V; (4)DC collector current, IC: 105A at TC = 25℃; 75A at TC = 80℃; (5)Pulsed collector current, tp = 1 ms, ICpuls: 210A at TC = 25℃; 150A at TC = 80℃; (6)Power dissipation per IGBT, Ptot: 625W; (7)Chip temperature Tj: + 150 ℃; (8)Storage temperature Tstg: -40 to + 125℃.

Features

BSM75GAL120DN features: (1)Single switch with chopper diode at collector; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

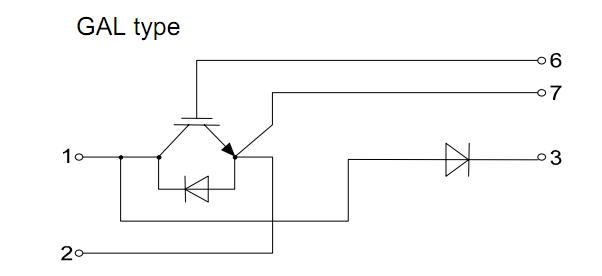

BSM75GAL120DN block diagram
