Product Summary

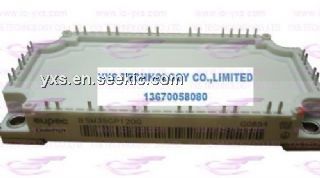

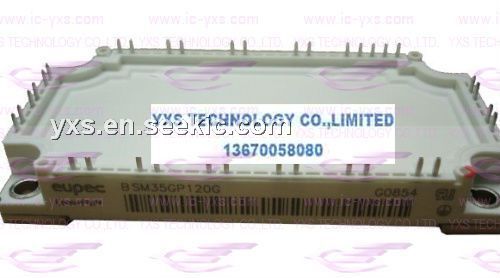

The BSM35GP120G is an IGBT module from eupec GmbH(Infineon).

Parametrics

BSM35GP120G absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1600V; (2)RMS forward current per chip, IFRMSM: 40A; (3)DC forward current, TC = 80℃, Id: 35A; (4)surge forward current, tP = 10 ms, Tvj = 150℃: 260A; (5)I2t - value, tP = 10 ms, Tvj = 150℃: 340 A2s.

Features

BSM35GP120G features: (1)internal insulation: Al2O3; (2)comperative tracking index: 225; (3)mounting torque: ±10%.

Diagrams

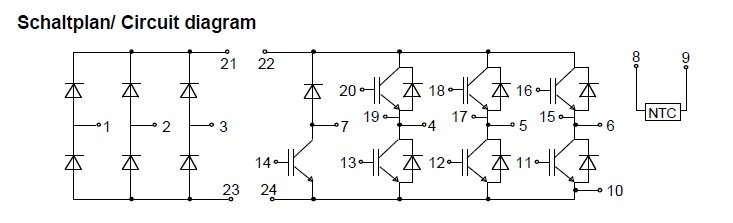

BSM35GP120G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM35GP120G
BSM35GP120G
Infineon Technologies
IGBT Modules 1200V 35A PIM
Data Sheet
0-6: $88.92
6-10: $80.02
