Product Summary

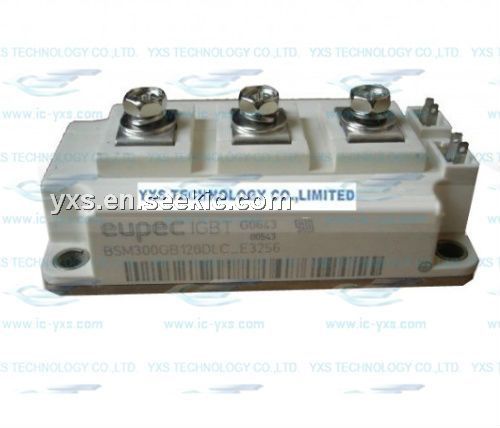

The BSM300GB120DLC-E3256 is an IGBT Module. It is characterized by low drive power, low vce (sat), discrete super-fast recovery, ree-wheel diode, high frequency operation and more. The typical applications of the BSM300GB120DLC-E3256 include DC motor control, NC equipment, AC motor control, contact less switches, electric furnace temperature control, light dimmers, welders and so on.

Parametrics

BSM300GB120DLC-E3256 absolute maximum ratings:(1)collector-emitter voltage, VCES: 1200 V at Tvj =25℃; (2)DC-collector current : IC,nom. =300 A at TC = 80 ℃; IC= 625 A at TC = 25 ℃; (3)repetitive peak collector current, ICRM: 600 A at tP = 1 ms, TC = 80℃ ; (4)total power dissipation, Ptot: 2,5 kW at TC= 25℃, Transistor ; (5)gate-emitter peak voltage, VGES: +/- 20V V; (6)DC forward current, IF: 300 A; (7)repetitive peak form. current, IFRM: 600 A at tP = 1 ms; (8)Diode I2t - value, Diode, I2t: 19 k A2s at VR = 0V, tp = 10ms, TVj = 125℃; (9) Insulation test voltage, VISOL: 2.5kV at RMS, f = 50 Hz, t = 1 min.

Features

BSM300GB120DLC-E3256 features: (1)Isolation internal insulation: Al2O3; (2)creepage distance: 20 mm; (3)clearance distance: 11 mm; (4)CTI comperative tracking index: 225; (5)mounting torque:M:3-6Nm; (6)terminal connection torque:M:2.5-5Nm; (7)weight G: 340 g.

Diagrams

BSM300GB120DLC-E3256 block diagram
