Product Summary

The BSM300GA120DN2SE3256 is an IGBT Power Module.

Parametrics

BSM300GA120DN2SE3256 absolute maximum ratings: (1)Collector-emitter voltage, VCE: 1200 V; (2)Collector-gate voltage, RGE = 20 kW, VCGR: 1200V; (3)Gate-emitter voltage, VGE: ±20V; (4)DC collector current, TC = 25℃, IC: 300A; TC = 80℃, IC: 430A; (5)Pulsed collector current, tp = 1 ms, TC = 25℃, ICpuls: 600A; TC = 80℃, ICpuls: 860A; (6)Power dissipation per IGBT, TC = 25℃, Ptot: 2500W.

Features

BSM300GA120DN2SE3256 features: (1)Single switch; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

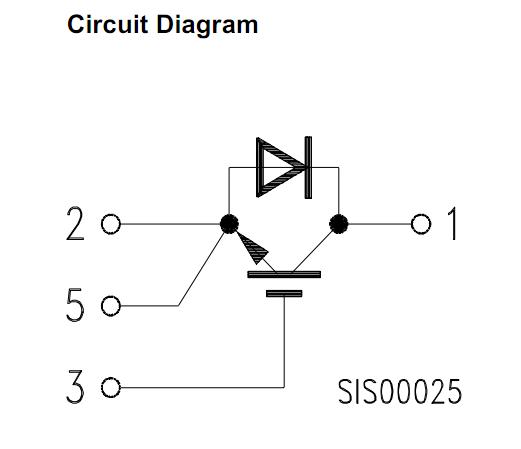

BSM300GA120DN2SE3256 block diagram
