Product Summary

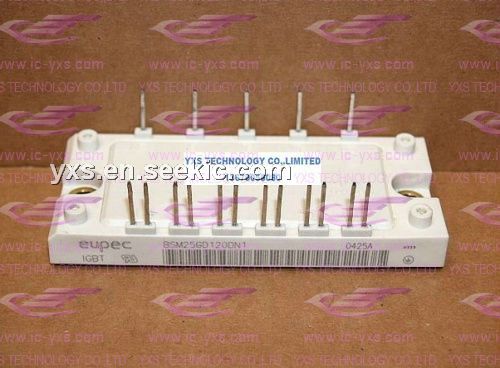

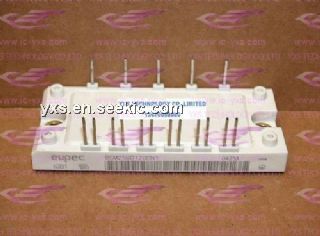

The BSM25GD120DN1 is an IGBT Power Module.

Parametrics

BSM25GD120DN1 absolute maximum ratings: (1)Collector-emitter voltage, VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kW, VCGR: 1200V; (3)Gate-emitter voltage, VGE: ±20V; (4)DC collector current, IC: 35A when TC = 25℃; 25A when TC = 80℃; (5)Pulsed collector current, tp = 1 ms, ICpuls: 70A when TC = 25℃; 50A when TC = 80℃; (6)Power dissipation per IGBT TC = 25℃, Ptot: 200W; (7)Chip temperature, Tj: + 150℃; (8)Storage temperature, Tstg: -40 to +125℃; (9)Thermal resistance, chip case RthJC: ≤0.6 K/W; (10)Diode thermal resistance, chip case, RthJCD: ≤ 1K/W; (11)Insulation test voltage, t = 1min, Vis: 2500 Vac; (12)Creepage distance: 16 mm; (13)Clearance: 11mm; (14)DIN humidity category, DIN 40 040: F sec; (15)IEC climatic category, DIN IEC 68-1: 40/125/56 sec.

Features

BSM25GD120DN1 features: (1)Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

Diagrams

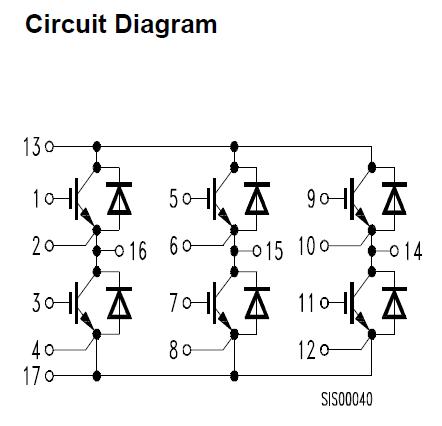

BSM25GD120DN1 block diagram
