Product Summary

The BSM15GP120 is an IGBT-Module.

Parametrics

BSM15GP120 absolute maximum ratings: (1)repetitive peak reverse voltage: 1600 V; (2)RMS forward current per chip: 40A; (3)DC forward current: 15A; (4)surge forward current: 230A; (5)Grenzlastintegral: 450 A2s.

Features

BSM15GP120 features: (1)forward voltage: 0.95 to 1V; (2)threshold voltage: 0.8V; (3)slope resistance: 10.5 mΩ; (4)reverse current: 2mA.

Diagrams

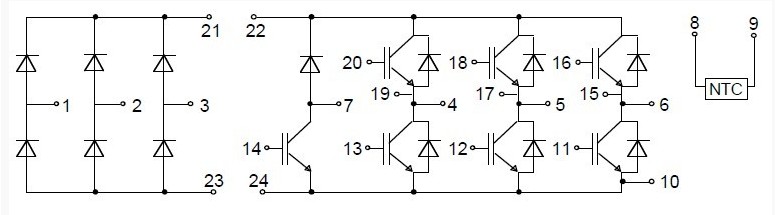

BSM15GP120 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BSM15GP120
BSM15GP120

Infineon Technologies

IGBT Modules 1200V 15A PIM

Data Sheet

0-1: $43.18
1-10: $38.86
10-50: $37.24
50-100: $36.74
BSM15GP120_B2
BSM15GP120_B2

Infineon Technologies

IGBT Modules N-CH 1.2KV 35A

Data Sheet

0-6: $63.38
6-10: $56.78
