Product Summary

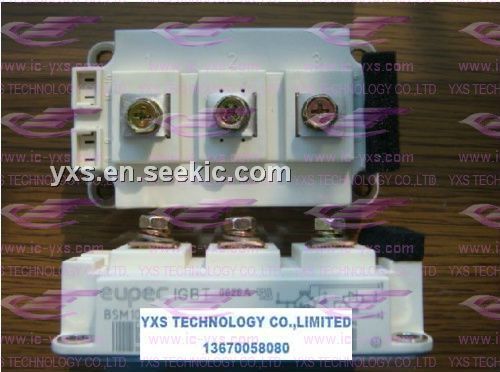

The BSM100GB120DN2E3256 is an IGBT power module.

Parametrics

BSM100GB120DN2E3256 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Collector-gate voltage, RGE = 20 kΩ: 1200V; (3)Gate-emitter voltage: ±20V; (4)DC collector current: TC = 25℃: 145A,TC = 80℃: 100A; (5)Pulsed collector current, tp = 1 ms: TC = 25℃: 290A, TC = 80℃: 200A; (6)Power dissipation per IGBT: 700W; (7)Chip temperature: +150℃; (8)Storage temperature: -40℃ to +125℃.

Features

BSM100GB120DN2E3256 features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

BSM100GB120DN2E3256 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM100GB120DN2E3256
BSM100GB120DN2E3256
Infineon Technologies
IGBT Modules IGBT POWER MODULE
Data Sheet
0-4: $114.50
4-5: $103.04
5-10: $91.60
10-50: $82.43
