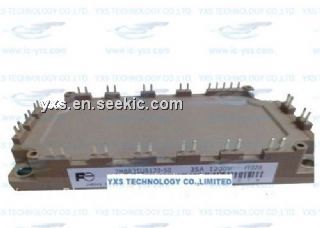

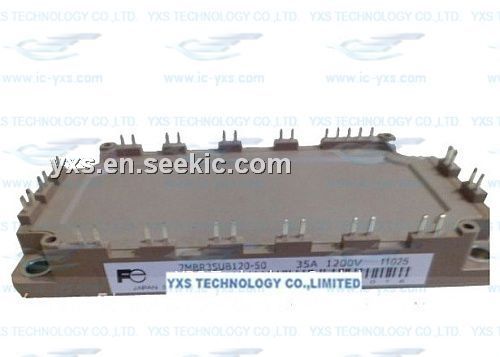

Product Summary
The 7MBR35UB120-50 is an IGBT module. The 7MBR35UB120-50 is designed for Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Parametrics
7MBR35UB120-50 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltaga VGES: ±20V; (3)Collector current, IC: Continuous: Tc=25℃: 35A; Tc=80℃: 25A; (4)Collector Power Dissipation, PC: 160W; (5)Junction temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Isolation voltage between terminal and copper base, Viso: 2500VAC.
Features
7MBR35UB120-50 features: (1)Low VCE(sat); (2)Compact Package; (3)P.C. Board Mount Module; (4)Converter Diode Bridge Dynamic Brake Circuit.

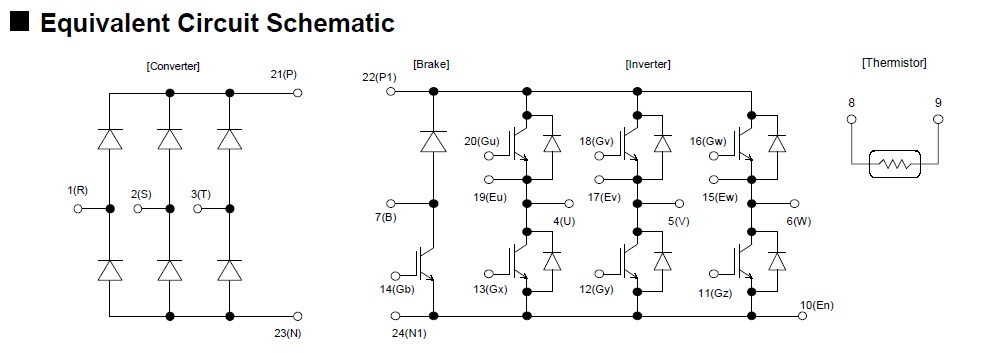

Diagrams
