Product Summary
The 7MBR25SA120-60 is an IGBT module. Applications include Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR25SA120-60 absolute maximum ratings: (1)Collector-Emitter voltage(inverter): 1200V; (2)Gate-Emitter voltage(inverter): ±20V; (3)Collector power dissipation(inverter): 25A; (4)Operating junction temperature: 150℃; (5)Storage temperature: -40 to +125℃.
Features
7MBR25SA120-60 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

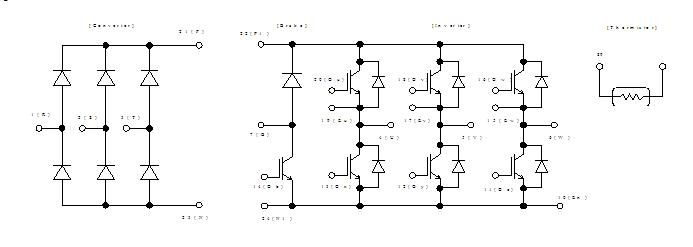

Diagrams
