Product Summary

The 6RI75G-160B is a power diode module. The applications of the 6RI75G-160B are: Inverters, Battery Chargers, DC Motors, General Purpose DC Power Supplies.

Parametrics

6RI75G-160B absolute maximum ratings: (1)Repetitive peak reverse voltage: 1200 to 1600V; (2)Non-repetitive peak reverse voltage: 1320 to 1760V; (3)Average output current: 75A; (4)Surge current: 1000A; (5)I2t: 4000A2s; (6)Operating junction temperature: -40 to +150℃; (7)Storage temperature: -40 to +125℃; (8)Isolation voltage: AC2500V; (9)Screw torque: 3.5Nm.

Features

6RI75G-160B features: (1)Glass Passivation Chip; (2)Easy Connection; (3)Insulated Type.

Diagrams

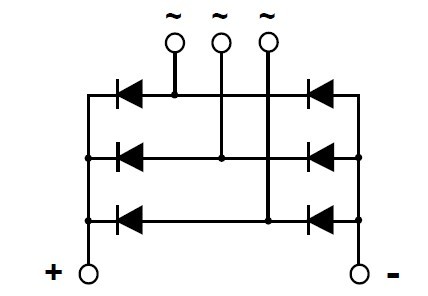

6RI75G-160B block diagram
