Product Summary

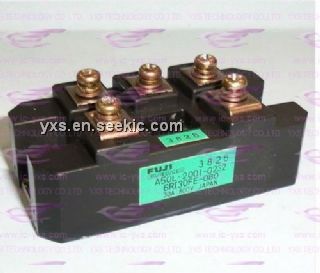

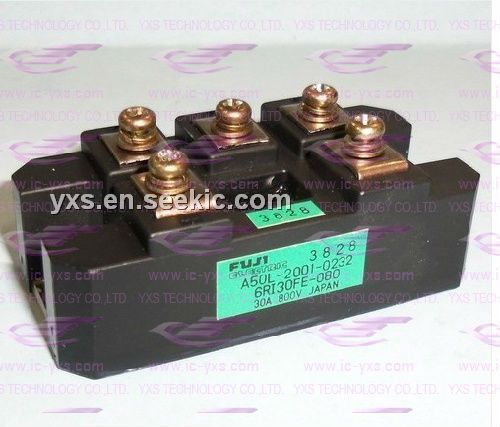

The 6RI30FE-060 is a power diode module. Application of the 6RI30FE-060 are inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers, general purpose DC power supply units.

Parametrics

6RI30FE-060 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 1600 V; (2)Non-repetitive peak reverse voltage VRSM: 1760 V; (3)Average output current lo 50/60 Hz Sinewave, Tc = 88℃: 30 A; (4)Surge current IFSM Rated load conditions: 320 A; (5)l2t I2, Rated load conditions: 400 A2s; (6)Junction temperature Tj: -40 + 150℃; (7)Storage temperature, Tstg: -40 + 125℃; (8)Tightening torque Mounting screw: M5: 25±5 kg-cm; (9)Vibration resistance: 5 G; (10)Dielectric strength Between terminals and base: 2500 VAC 1 min; (11)Net. Weight: 100 g.

Features

6RI30FE-060 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space - a cost-effective feature; (2)The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3)6 diode chips are connected to the 3-phase bridge rectifying circuit inside the module-a cost-effective feature.

Diagrams

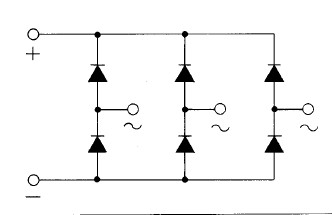

6RI30FE-060 block diagram
