Product Summary

The 6MBI30F-060 is an IGBT module. The applications of the 6MBI30F-060 include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.

Parametrics

6MBI30F-060 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, continuous, IC: 30A; 1ms, ICpulse: 60A; continuous, -IC: 30A; 1ms, -ICpulse: 60A; (4)Power dissipation, PC: 120W; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃.

Features

6MBI30F-060 features: (1)Low saturation voltage; (2)Voltage drive; (3)Variety of power capacity series.

Diagrams

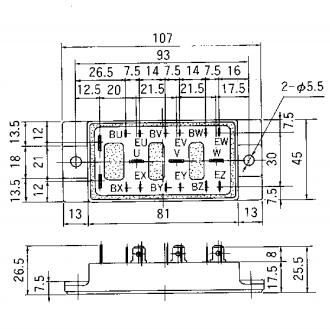

6MBI30F-060 block diagram
