Product Summary

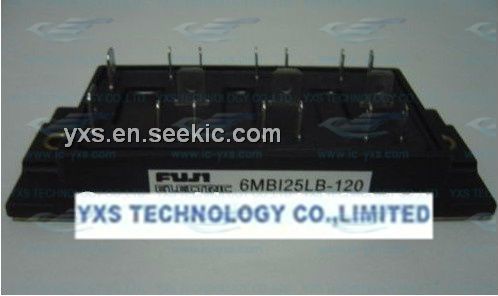

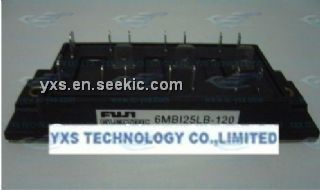

The 6MBI25LB-120 is an IGBT module. The applications of the 6MBI25LB-120 are inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.
Parametrics
6MBI25LB-120 absolute maximum ratings: (1)collecter-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collecter current: continuos, IC: 25A; 1ms, ICpulse: 50A; continuous, -IC: 25A; 1ms, -ICpulse: 50A; (4)max power dissipation, PC: 250W; (5)operating temperature, Tj=150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)net,weight: 510g; (8)isolation voltage, AC.1min: Visol: 2500V; (9)screw torque: 35 kg.m.
Features
6MBI25LB-120 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

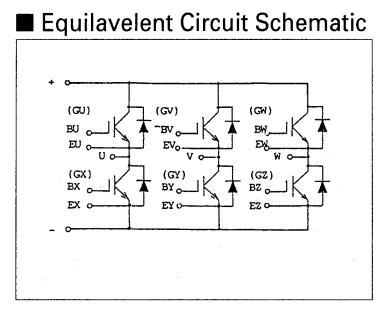

Diagrams
