Product Summary

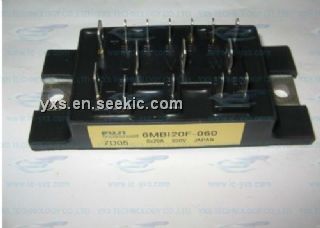

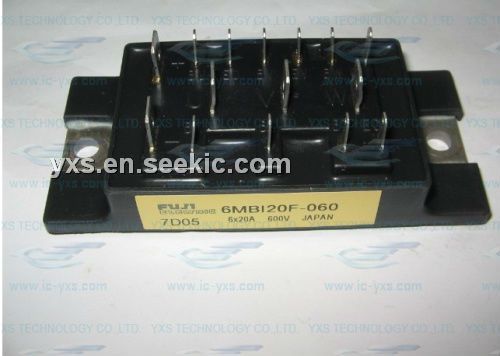

The 6MBI20F-060 is a 6-pack IGBT module. It has a wide application in inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.
Parametrics
6MBI20F-060 absolute maximum ratings: (1)collecter-emitter voltage, Vces: 600V; (2)Gate emitter voltage, Vges: ±20V; (3)collecter current, continuous, Ic: 30A; (4)collecter current, 1ms, Icpulse: 60A; (5)collecter current, continuous, Ic: 30A; (6)collecter current, 1ms, -Icpulse: 60A; (7)Max power dissipation, Pc: 120W; (8)operating temperature, Tj: +150℃; (9)storage temperature, Tstg:-40 to +125℃; (10)Net weight: 235g.
Features
6MBI20F-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.
Diagrams
