Product Summary

The 6MBI150FB060 is an IGBT module. It is suitable for inverter for motor drive, ACDC servo drive amplifer, uninterruptible power supply and industrial machines, such as welding machines.

Parametrics

6MBI150FB060 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 150A; (4)IC pulse: 300A; (5)-IC: 150A; (6)-IC pulse: 300A; (7)PC: 450W; (8)Tj: 150℃; (9)Tstg: -40 to 125℃.

Features

6MBI150FB060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

Diagrams

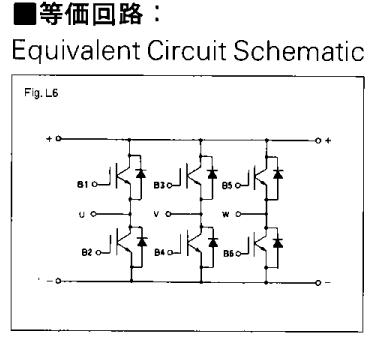

6MBI150FB060 block diagram
