Product Summary

The 2MBI75L-060 is an IGBT module (L series) that can be used in inverter for motor drive, AC and DC servo drive amplifier, uninterrup-tible power supply, industrial machines such as welding machines.

Parametrics

2MBI75L-060 absolute maximum ratings: (1)collector-emitter voltage: 600 V; (2)gate-emitter voltage: ±20 V; (3)collecter current: continuous, IC=75A; 1ms, IC pulse=150A; continuous, -IC=75A; 1ms, -IC pulse=150A; (4)max. power dissipation: 325 W; (5)operating temperature: +150℃; (6)storage temperature: -40 to +125℃; (7)net. weight: 185 g; (8)isolation voltage at AC.1min: 2500 V; (9)screw torque mounting: 35 kg.cm; (10)screw torque terminals: 35 kg.cm.

Features

2MBI75L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

Diagrams

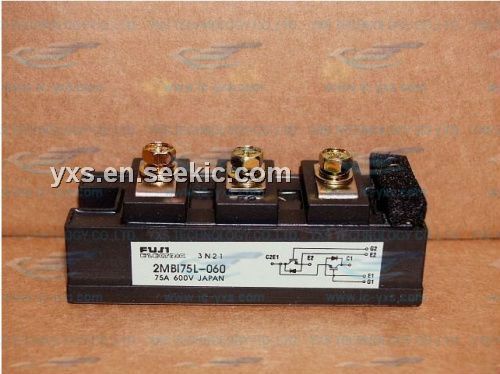

2MBI75L-060 block diagram
