Product Summary

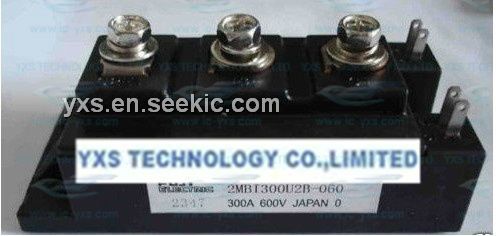

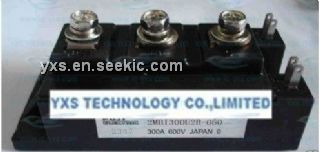

The 2MBI300U2B-060 is an IGBT module. Its applications include Inverter for Motor drive, AC and DC servo drive amplifier, Uninterruptible power supply, Industrial machines, such as welding machines.
Parametrics
2MBI300U2B-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600 V; (2)Gate -Emitter Voltage, VGES: ±20 V; (3)Collector Current Continuous, IC: 300 A; (4)Collector Current 1ms, IC PULSE: 600 A; (5)Collector Current Continuous, -IC: 300 A; (6)Collector Current 1ms, -IC PULSE: 600 A; (7)Max. Power Dissipation, PC: 1000 W; (8)Operating Temperature, Tj: +150 ℃; (9)Storage Temperature, Tstg: -40 ~ +125 ℃; (10)Isolation Voltage A.C. 1min., Vis: 2500 V.
Features
2MBI300U2B-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

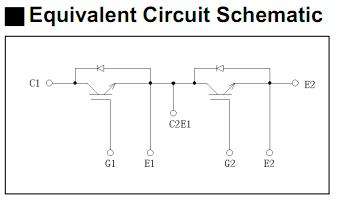

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300U2B-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
