Product Summary
The 2MBI200TA-060 is an IGBT module.
Parametrics
2MBI200TA-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600 V; (2)Gate -Emitter Voltage, VGES: ±20 V; (3)collector current, continuous, IC: 200A; 1ms, IC pulse: 400A; continuous, -Ic: 200A; 1ms, -IC pulse: 400A; (4)Max. Power Dissipation, PC: 780 W; (5)Operating Temperature, Tj: +150℃; (6)Storage Temperature, Tstg: -40 ~ +125℃; (7)isolation voltage, AC 1 min, Vis: 2500V; (8)screw topque, mounting: 3.5N.m; terminals: 3.5N.m.
Features
2MBI200TA-060 features: (1)Zero gate voltage Collector current: 2.0 mA; (2)Gate-Emitter leakage current: 400 nA; (3)Forward on voltage: 1.75V; (4)Allowabe avalanche energy during short circuit cutting off: 140mJ.

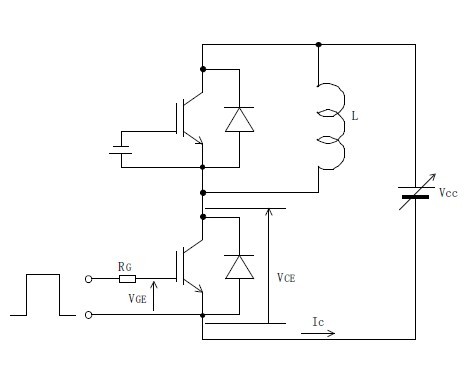

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI200TA-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
