Product Summary

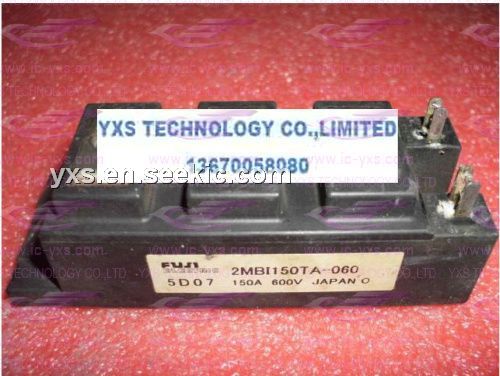

The 2MBI150TA-060 is an IGBT power module. The applications of it are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI150TA-060 absolute maximum ratings: (1)Circuits Per Package=2; (2)V(BR)CES (V)=600V; (3)V(BR)GES (V)=6.0V; (4)I(C) Abs.(A) Collector Current=150A; (5)Absolute Max. Power Diss. (W)=600W; (6)V(CE)sat Max.(V)=5.0V; (7)t(d)off Max. (s) Off time=1.5us; (8)Maximum Clock Frequency: 400 KHz; (9)Operating Supply Voltage: 8.50V; (10)Maximum Supply Current: 0.12 mA; (11)Maximum Power Dissipation: 400 mW; (12)Maximum Operating Temperature: +180℃; (13)Minimum Operating Temperature: - 80℃.
Features
2MBI150TA-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function.

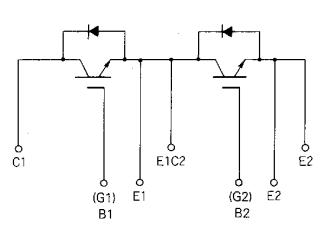

Diagrams
