Product Summary

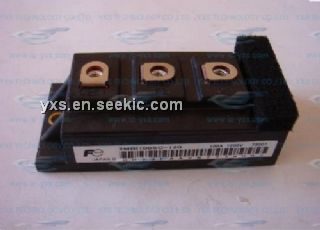

The 2MBI100SC-120 is an IGBT module. The applications of the 2MBI100SC-120 are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

2MBI100SC-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Collector current: IC: 150A, ICP: 300A, -IC: 100A, -ICP: 200A; (4)Max. Power Dissipation: 780 W; (5)Operating Temperature: +150℃; (6)Storage Temperature: -40 to +125℃; (7)Isolation Voltage A.C. 1min.: 2500 V.

Features

2MBI100SC-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

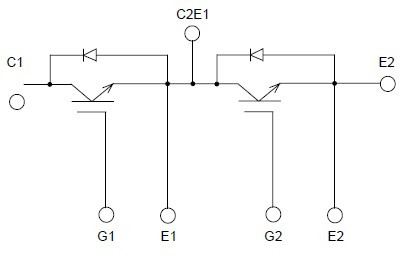

2MBI100SC-120 block diagram
