The 1MBI200S-060 is an IGBT module. The applications of the 1MBI200S-060 include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.
Parametrics
1MBI200S-060 absolute maximum ratings: (1)Collecter-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collecter current, continuous, IC: 200A; 1ms, ICpulse: 400A; continous, -IC: 200A; 1ms, -IC pulse: 400A; (4)Max. power dissipation, PC: 1500W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Net. weight: 415g; (8)Isolation voltage, AC.1min, Visol: 2500V.
Features
1MBI200S-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

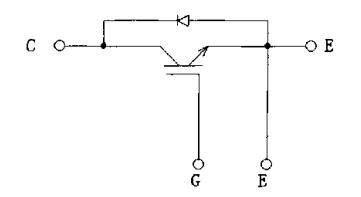

Diagrams
