Product Summary
The svr-12v is a low signal relay for PCBs, and is a universal power supply fon a din-rail. The output voltage can be set by a wire strap from 13.8V to 27.6V. The standard output voltage is 13.8 V. Due to the wide range input, the svr-12v can be used worldwide. The connection takes place with screw terminals. External accumulators can be connected to the svr-12v. It is suitable for all TCR-devices.
Parametrics
svr-12v absolute maximum ratings: (1)L × W × H (in mm): 72 × 90 × 65; (2)Weight: 180g; (3)Input voltage: 92 to 265V; (4)Output voltage: 13.8VDC/1%(terminal 7-8 without connection), 27.6VDC/1%(terminal 7-8 connected); (5)Output current: 1.5A; (6)Ripple voltage: ＜ 100mV; (7)Power consumption: 2W; (8)Operating temperature: -5℃ to + 45℃.
Features
svr-12v features: (1)Operation indication: Yes; (2)Power fail signal: yes; (3)Class: two, no PE; (4)Protection class: IP 20 according to EN 60 529; (5)Color: light frey; (6)Material: PC plastic.

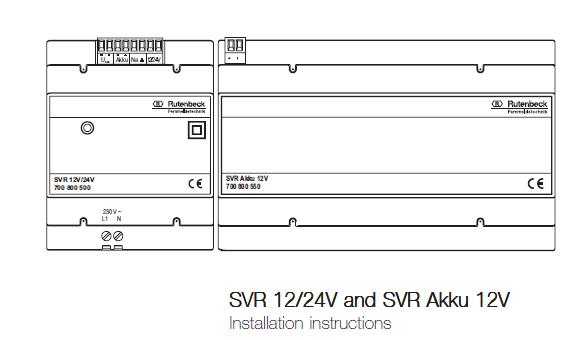

Diagrams
