Product Summary
The rt214024 is an interface power relay. And it can be used in panel boards, mechanical engineering.
Parametrics
rt214024 absolute maximum ratings: (1)Contact configuration: 1 CO or 2 CO; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 12 / 16 A or 8 A; (5)Rated voltage / max. switching voltage AC: 240/400 VAC; (6)Maximum breaking capacity AC: 3000 / 4000 VA or 2000 VA; (7)Contact material: AgNi 90/10.
Features
rt214024 features: (1)1 pole 12 / 16 A, 2 pole 8 A, 1 CO contact or 2 CO contacts; (2)DC- or AC coil; (3)Sensitive coil 400 mW; (4)Reinforced insulation, protection class II (VDE 0700); (5)5 kV / 10 mm coil-contact; (6)1pole 12 A with 3.5 or 5 mm pinning; (7)Recycleable packaging; (8)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

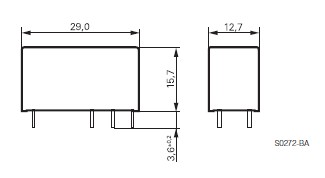

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

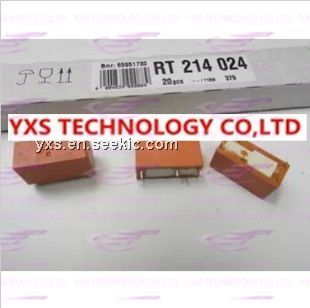

 RT214024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT 12A 24VDC PCB MINIATURE RELAY |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
RT212-127-060 |
Richco Inc. |
TOROIDAL CORES GRAY |
Data Sheet |
Negotiable |
|
||||||
|
RT214006 |
|
RELAY GEN PURPOSE SPDT 12A 6V |
Data Sheet |
|
|
||||||
|
RT214024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT 12A 24VDC PCB MINIATURE RELAY |
Data Sheet |
Negotiable |
|
||||||
|
RT214048 |
|
RELAY GEN PURPOSE SPDT 12A 48V |
Data Sheet |
Negotiable |
|
||||||
|
RT214110 |
|
RELAY GEN PURPOSE SPDT 12A 110V |
Data Sheet |
|
|
||||||
|
RT214524 |
|
RELAY GEN PURPOSE SPDT 12A 24V |
Data Sheet |
|
|
||||||
