Product Summary

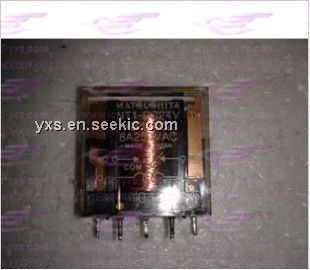

nt1-dc24v is a kind of vertical type power relay.Typical applications include: Electronic computer and peripheral equipment, data transmission equipment, security equipment, communication equipment, various machine tools, etc.

Parametrics

nt1-dc24v absolute maximum ratings:(1)Arrangement: 1 Form C; (2)Contact material: Gold-clad over silver-nickel; (3)Initial contact resistance, max. (By voltage drop 6 V DC 1A): 50 mW; (4)Max. switching power: 2000 VA, 120 W; (5)Max. switching voltage: 250 V AC, 24 V DC; (6)Max. switching current: 8 A.

Features

nt1-dc24v features: (1)High contact capacity of 8 A 250 V AC; (2)Sensitive: 140 mW (DC) low operating power; (3)Compact size, small mounting space for high density packaging; (4)Long life, Mechanical: more than 107 operations; (5)Electrical (8 A 250 V AC resistive): more than 105 operations; (6)Standard terminal grid, .100 inch (2.54 mm); (7)AC coils available.

Diagrams

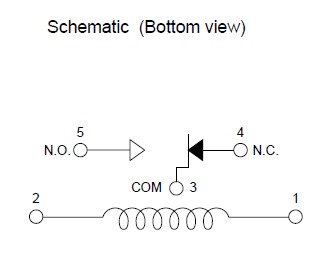

nt1-dc24v circuit diagram
