Product Summary

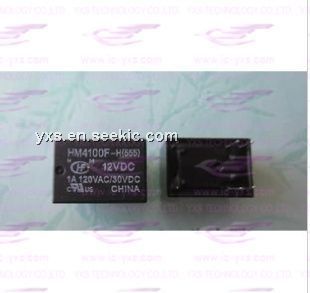

The hm4100f-h-dc12v is a subminiature power relay.

Parametrics

hm4100f-h-dc12v absolute maximum ratings: (1)max switching voltage: 300VAC/150VDC; (2)max switching current: 2A; (3)max switching power: 240VA/30W; (4)ambient temperature: -25 to 70℃.

Features

hm4100f-h-dc12v features: (1)UL/CUR file No E170653; (2)extremely low cost SPDT configuration; (3)standard PC layout; (4)sealed version avaible.

Diagrams

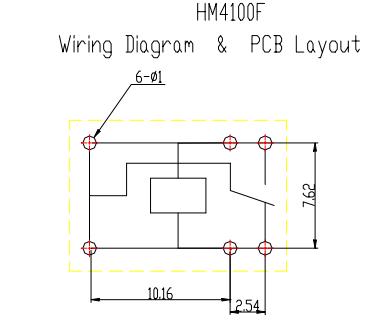

hm4100f-h-dc12v pin connection
