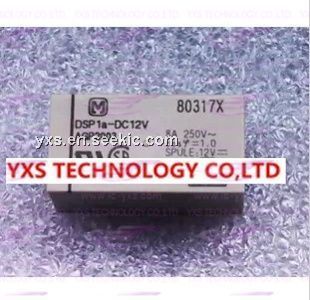

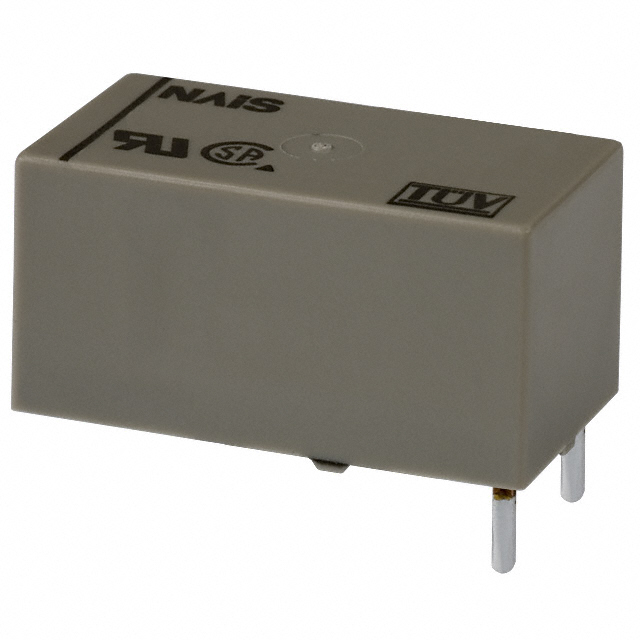

DSP1A-DC12V

dsp1a-dc12v, miniature power relay, 12 V, 8 A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.60~3.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	3.90 / Piece
20 ~ 60 :	3.20 / Piece
60 ~ 80 :	2.60 / Piece

PartNumber:: DSP1A-DC12V

Brand:: Panasonic Semiconductor - Panasonic | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-19

From Other Seller

Part Number:DSP1A-DC12V
US $2.60 - 3.90
Quantity:

piece

Product Summary

dsp1a-dc12v is a kind of 8 A miniature power relay.Typical applications include: (1)Terminal devices of information processing equipment, such as printer, data recorder; (2)Office equipment (copier, facsimile); (3)Measuring instruments; (4)NC machines, temperature controllers; (5)and programmable logic controllers.

Parametrics

dsp1a-dc12v absolute maximum ratings: (1)Arrangement: 1a; (2)Contact material: AgSnO2 type; (3)Initial contact resistance, max. (By voltage drop 6 V DC 1A): 30 mΩ; (4)Max. switching power: 2,000 VA 150 W; (5)Max. switching voltage: 250 V AC, 30 V DC; (6)Max. switching current: 8 A; (7)Min. switching capacity: 10 mA, 5 V DC.

Features

dsp1a-dc12v features:(1)Power types added to DS relay series; (2)High switching capacity: 1a: 8 A 250 V AC /1a1b, 2a: 5 A 250 V AC; (3)High sensitivity: 190 mW pick-up power; (4)High contact welding resistance; (5)Latching types available; (6)High breakdown voltage 3,000 Vrms between contacts and coil 1,000 Vrms between open contacts; (7)Sealed types are standard.
