Product Summary

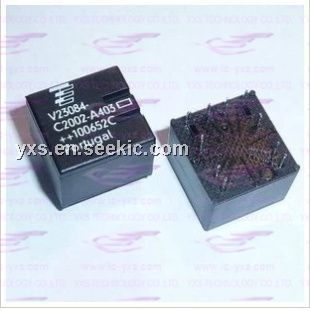

The V23084-C2002-A403 is a PCB relays Twin relay. It is ideal for: (1)Flasher load; (2)Central doorlock; (3)Headlight dipping; (4)Immobilizers; (5)Seat adjustment motors; (6)Sunroof and window motors.



Parametrics

V23084-C2002-A403 absolute maximum ratings: (1)Available for nominal voltages: 12 V; (2)Nominal power consumption of the unsuppressed coil at nominal voltage: 1.1 W; (3)Test voltage winding/contact: 500 VACrms; (4)Maximum ambient temperature range 1): – 40 to + 85 °C; (5)Max. switching rate without contact loading: 20 Hz; (6)Operate time 2): Typ. 3 ms; (7)Release time 2): Typ. 1.5 ms.

Features

V23084-C2002-A403 features: (1)Two Mini power relay K in one housing; (2)Optimized assembly costs; (3)Reduced overall volume.

Diagrams

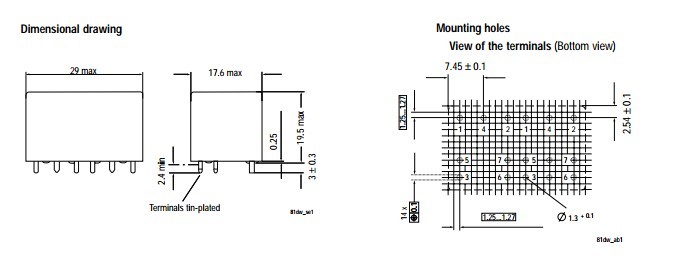

V23084-C2002-A403 pin connection
