Product Summary

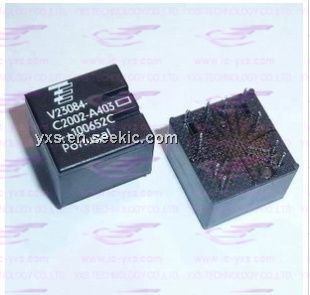

The V23084-C2002-A303 is designed as a twin PCB relay. And it can be used in (1)Door locking systems; (2)Immobilizers; (3)Seat adjustment motors; (4)Seatbelt pretensioner; (5)Sunroof and window motors.

Parametrics

V23084-C2002-A303 absolute maximum ratings: (1)Contact configuration: 2 Changeover contacts/2 Form C; (2)Rated voltage: 12 V; (3)Rated current: 15 A/15 A or 30 A/30 A; (4)Contact material: AgNi 0,15 or AgSnO2; (5)Max. switching voltage/power: See load limit curve; (6)Min. recommended load: 1 A at 5 V; (7)Voltage drop at 10 A (initial) for NC/NO contacts: typ. 30 mV, 300 mV max..

Features

V23084-C2002-A303 features: (1)Two separate systems; (2)Lamp applications; (3)Extremely space saving double relay.

Diagrams

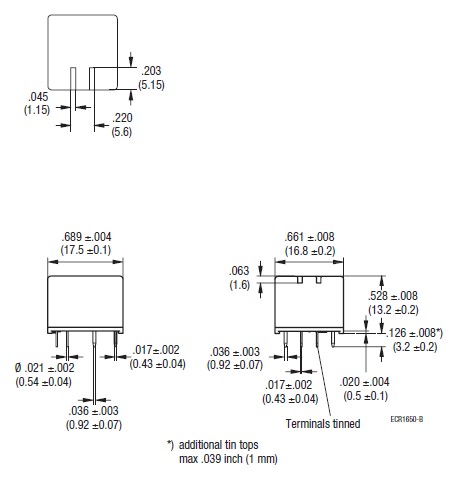

V23084-C2002-A303 dimension figure
