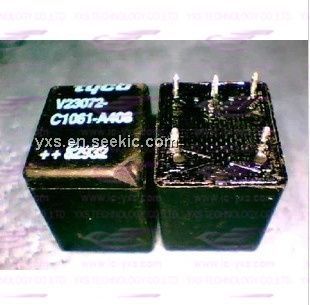

Product Summary

The V23072-C1061-A408 is designed as a single PCB relay. And it can be used in (1)Car alarm; (2)Hazard warning signal; (3)Heated rear screen; (4)Immobilizer; (5)Lamps front, rear, fog light; (6)Interior lights; (7)Sun roof; (8)Turn signal; (9)Wiper control.

Parametrics

V23072-C1061-A408 absolute maximum ratings: (1)Typical areas of application: Resistive / inductive loads and Head/ indicator lamps; (2)Rated voltage: 12 V; (3)Rated current: 5 A/10 A, 2 x 6 A and 2 x 5 A; (4)Contact material: AgNi0.15 and AgSnO2; (5)Max. switching voltage/power: See load limit curve; (6)Min. recommended load: 1 A at 5 V; (7)Voltage drop at 10 A (initial) for NC/NO contacts: Typ. 50 mV, 300 mV max. or Typ. 2 x 50 mV, 300 mV max. or Typ. 150 mV, 300 mV max..

Features

V23072-C1061-A408 features: (1)Limiting continuous current 20 A; (2)Also available for 42 V applications.

Diagrams

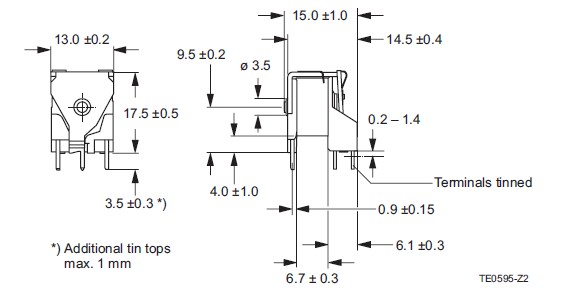

V23072-C1061-A408 dimension figure
