Product Summary
The TX2-3V is designed as a 2 A capacity relay with high surge voltage & high breakdown voltage.
Parametrics
TX2-3V absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 100 mΩ; (3)Contact material: Gold-clad silver alloy; (4)Temperature rise: Max. 50°C; (5)Operate time [Set time]: Max. 4 ms (Approx. 2 ms); (6)Release time [Reset time]: Max. 4 ms (Approx. 1 ms).
Features
TX2-3V features: (1)Breakdown voltage between contacts and coil: 2,000 V; (2)Surge withstand between contacts and coil: 2,500 V; (3)High contact capacity: 2 A 30 V DC; (4)Surface-mount type available.

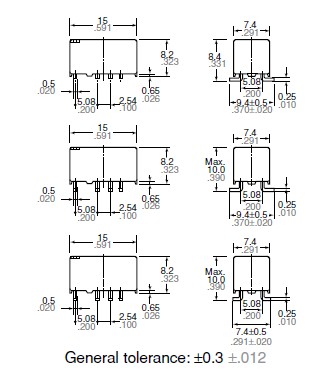

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TX2-3V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 3VDC DPDT NON-LATCHING PCB |
Data Sheet |
|
|
|||||||||||||
TX2-3V-TH |
Panasonic Electric Works |
Low Signal Relays - PCB TX Relay |
Data Sheet |
|
|
