Product Summary

The RY24D-K is designed as a 2 poles—1 to 2 A (for signal switching) miniature relay.

Parametrics

RY24D-K absolute maximum ratings: (1)Contact Arrangement: 2 form C (DPDT); (2)Contact material: Gold overlay silver-palladium; (3)Maximum Carrying Current: 0.6 A; (4)Maximum Switching Power: 36 VA/7.2 W; (5)Nominal Power (at 20°C): 0.45 to 0.48 W; (6)Operate Power (at 20°C): 0.2 to 0.21 W; (7)Operating Temperature: –30°C to +70°C.

Features

RY24D-K features: (1)Ultra high sensitivity; (2)UL, CSA recognized; (3)Conforms to FCC rules and regulations Part 68: surge strength 1,500 V; (4)High dielectric strength type available (RY-WF type); (5)Contact arrangement MBB type available (RY-D type); (6)High reliability-bifurcated contacts; (7)Wide operating range; (8)DIL pitch terminals; (9)Plastic sealed type.

Diagrams

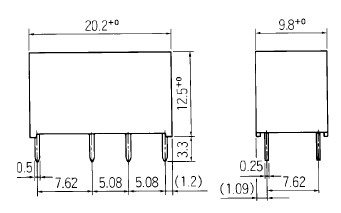

RY24D-K dimension figure
