Product Summary

The RY211024 is a miniature power PCB. And it can be used in heating control, interface technology, domestic appliances, timers, temperature control.

Parametrics

RY211024 absolute maximum ratings: (1)Contact configuration: 1 CO or 1NO or 1NC; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 8 A; (5)Rated voltage / max. switching voltage AC: 250/400 VAC; (6)Maximum breaking capacity AC: 2000 VA; (7)Contact material: AgNi0,15, AgSnO2, AgCdO.

Features

RY211024 features: (1)1 pole 8 A, 1 CO or 1 NO or 1 NC contact; (2)Low component height 12.3 mm; (3)5 kV / 8 mm coil-contact; (4)Reinforced insulation (protection class II); (5)Pinnings: 3.2 and 5 mm; (6)reflow-solderable version; (7)Sockets with PCB-type terminals; (8)Especially suitable for resistive and inductive loads on NO and NC contacts; (9)Plastic materials according to IEC60335-1 (domestic appliances) (not at reflow-solderable version); (10)RoHS compliant (Directive 2002/95/EC) as per product date code 0403.

Diagrams

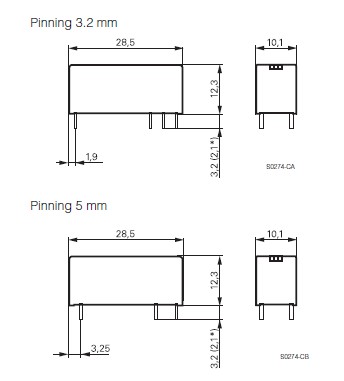

RY211024 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

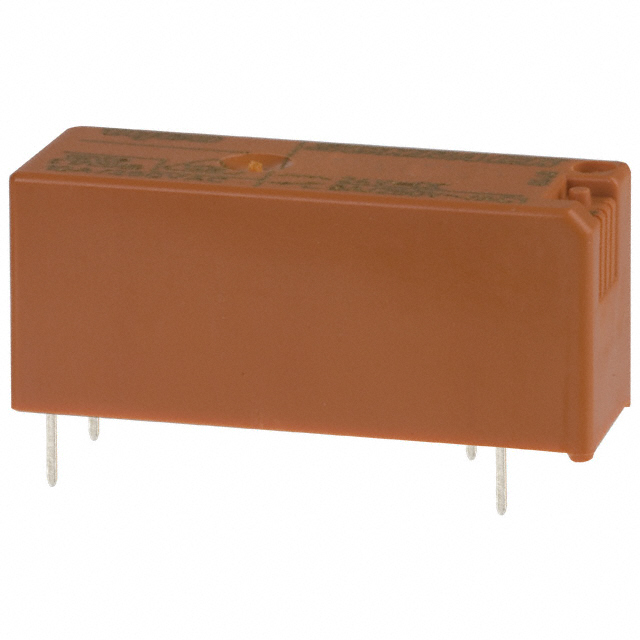

RY211024
RY211024

RELAY GEN PURPOSE SPDT 8A 24V
Data Sheet
0-1: $2.84
1-25: $2.48
25-50: $2.25
50-100: $1.77
100-250: $1.60
250-500: $1.51
500-1000: $1.45
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RY210005
RY210005
TE Connectivity / Schrack
General Purpose / Industrial Relays 8 AMP 5VDC SPDT
Data Sheet
0-315: $1.76
315-500: $1.72
500-1000: $1.67
RY210009
RY210009
TE Connectivity / Schrack
General Purpose / Industrial Relays SPDT 8A 9VDC 320Ohm Mini PWR PCB Relay
Data Sheet
0-750: $1.58
750-1000: $1.45
RY210012
RY210012
TE Connectivity / Schrack
General Purpose / Industrial Relays GP SPDT 8A 12VDC PLUGIN
Data Sheet
0-1: $2.70
1-10: $2.51
10-25: $2.36
25-50: $2.13
RY210015
RY210015
TE Connectivity / Schrack
General Purpose / Industrial Relays SPDT 8A 15VDC Mini PWR PCB Relay
Data Sheet
0-1: $2.84
1-25: $2.54
25-50: $2.35
50-100: $1.95
RY210024
RY210024
TE Connectivity / Schrack
General Purpose / Industrial Relays 24VDC SPDT 8A Flux proof
Data Sheet
0-1: $2.82
1-10: $2.63
10-25: $2.47
25-50: $2.23
RY210048
RY210048

RELAY GEN PURPOSE SPDT 8A 48V
Data Sheet
0-100: $2.87
