Product Summary

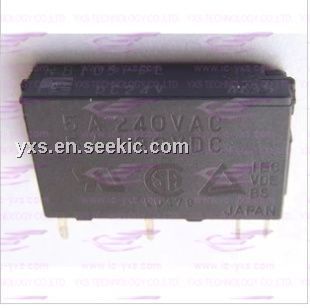

The RB105-DE-DC24V is a 5A Industrial Control Relay. It is designed for printed circuit board use. The RB105-DE-DC24V is extremely thin (5mm) and so, can be densely mounted on PC boards. As a result, PC board size and cost can be greatly reduced. Employing of bifurcated contacts ensure high contact reliability, allowing the RB105-DE-DC24V relay to be used in lowlevel circuits. Coil voltages are available in ranges from 4.5V to 24V DC.

Parametrics

RB105-DE-DC24V general specifications: (1)power consumption: 200mW; (2)rated voltage: 24V; (3)pick-up voltage: 70% of rated voltage or less; (4)thermal current: 5A; (5)make and break current: 5A at 250VAC, 5A at 30VDC.

Features

RB105-DE-DC24V features: (1)Thin, miniature size and light weight: The mounting space on the PC board can be reduced; (2)UL, CSA and TÜV approved; (3)Low power consumption: They can be operated by means of non-polarity magnet; (4)SIL terminal arrangement, SIL (Single-side In-Line lead)package allows the relays to be mounted easily on PC board; (5)Fluxtight construction; (6)Immersion cleanable.

Diagrams

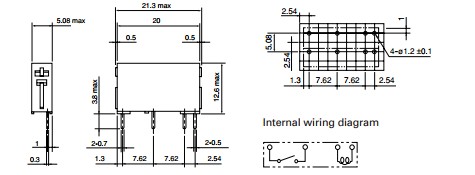

RB105-DE-DC24V package dimensions
