Product Summary

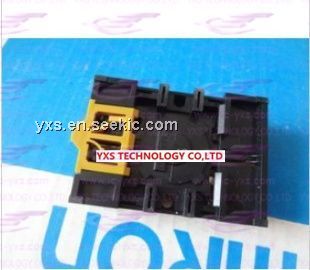

The P2CF-08 is a slim and space-saving power plug-in relay.
Parametrics
P2CF-08 absolute maximum ratings: (1)Rated carry current: 10 A; (2)Max. switching voltage: 440 VAC, 125 VDC; (3)Max. switching current: 10 A; (4)Max. switching power: 2,500 VA, 300 W; (5)Failure rate (reference value): 100 mA at 5 VDC.
Features
P2CF-08 features: (1)Lockable test button models now available; (2)Built-in mechanical operation indicator; (3)Provided with nameplate; (4)AC type is equipped with a coil-disconnection self-diagnostic function (LED type); (5)High switching power (1-pole: 10 A); (6)Environment-friendly (Cd, Pb free); (7)Wide range of Sockets also available.

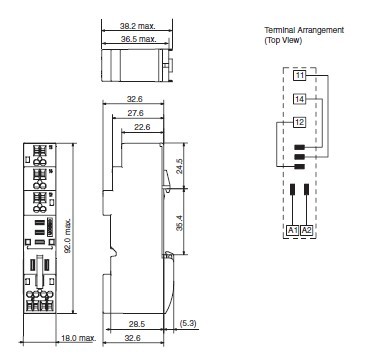

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P2CF-08 |
Omron Industrial |
Relay Sockets & Hardware 8P OCTAL DIN |
Data Sheet |
|
|
||||||||||||
|
P2CF-08-E |
Omron Industrial |
Relay Sockets & Hardware 8 PIN Socket |
Data Sheet |
|
|
||||||||||||
