Product Summary

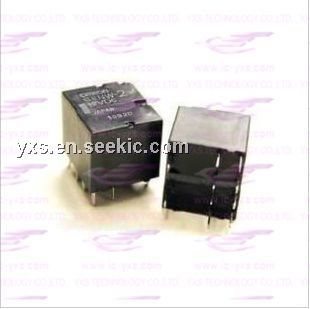

The G8NW-2S-12V is an ultra-miniature automotive PCB relay.
Parametrics
G8NW-2S-12V absolute maximum ratings: (1)Rated voltage: 12 VDC; (2)Coil resistance (±10%): 180 Ω; (3)Nominal power consumption: 800 mW; (4)Pull in voltage: < 6.5 V; (5)Dropout voltage: > 1.0 V.
Features
G8NW-2S-12V features: (1)Compact size; (2)High performance PCB relay; (3)Fully automated assembly; (4)Fully sealed construction; (5)Separate SPDT contacts.

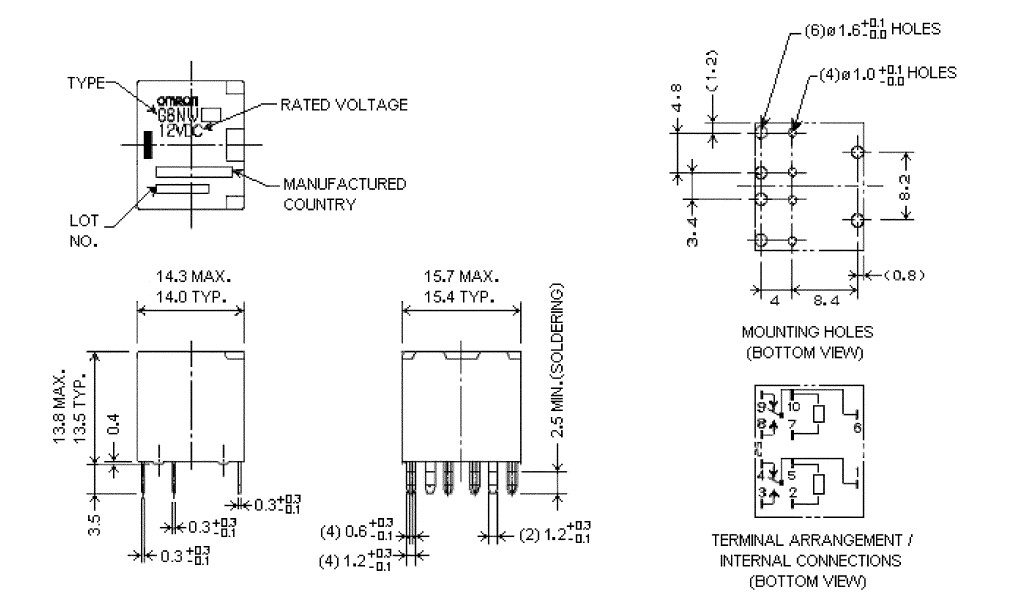

Diagrams
