Product Summary
The NA4.5W-K is a 4 pole (2 form c 2 form a) signal relay.
Parametrics
NA4.5W-K absolute maximum ratings: (1)Arrangement: 2 Form C+ 2 Form A; (2)Resistance (initial): Maximum 75 Ω (at 1A 6VDC); (3)Rating (resistive): 30VDC 1A/ 125VAC 0.2A; (4)Maximum Carrying Current: 1.25 a.
Features
NA4.5W-K features: (1)HIGH RELIABILITY Bifurcated gold overlay silver alloy; (2)HIGH HEAT RESISTANCE, FLAMMABILITY Flammability grade of 94V-0 materials employed; (3)AIR TIGHT CONSTRUCTION; Air tight construction allows high resistance to various; environments and to clean the relay; (4)SMT VERSION; (5)Surface mount type available on request; (6) RoHS compliant since date code: 0430B8 Please see page 7 for more information.

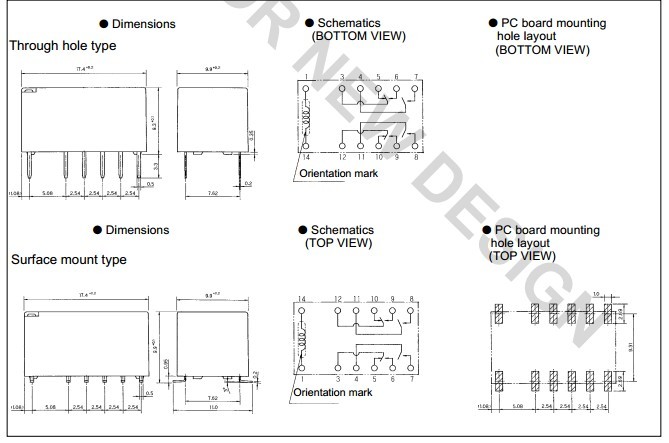

Diagrams
